Current location：Home » Products » Products » 額定電壓500V多芯屏蔽電子計算機電纜

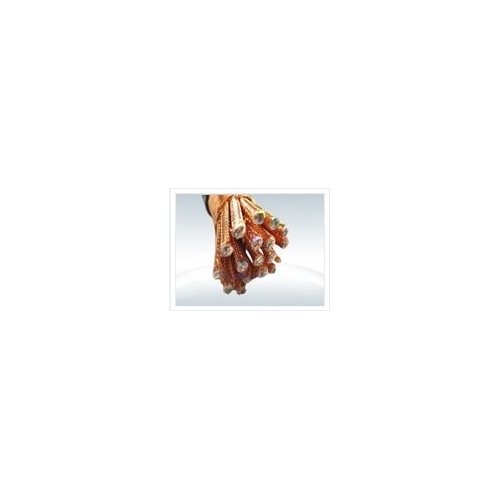

額定電壓500V多芯屏蔽電子計算機電纜

Upload OF：2016-03-31 09-32-50 Updated：admin

型號	名稱	敷設條件
DJYVP	電子計算機用對絞式聚乙烯絕緣聚氯乙烯護套銅帶繞包屏蔽電纜	固定敷設
DJYVP20	電子計算機用對絞式聚乙烯絕緣聚氯乙烯護套銅帶繞包屏蔽鋼帶鎧裝電纜	固定敷設

型號及規格		標稱截面	導電線芯結構 根數/直徑	絕緣厚度	對屏蔽銅皮厚度	護套厚度	電纜外徑	20℃電纜直流電阻	20℃電纜絕緣電阻	電纜交貨長度
型號及規格		mm2	n/mm	mm	mm	mm	mm	Ω/km	MΩ/k.m	m
DJYVP DJYVP20	4芯					1.6	≤168
	6芯	0.8	1.01	0.70	0.10	1.6	≤21.5	≤18.4	≥500		≥50
	16芯					2.0	≤25.5
	18芯					2.0	≤27.5
	4芯					1.6	≤20.5
	6芯					1.6	≤25.5
	16芯	0.8	1.01	0.70	1.0	2.0	≤29.5	≤18.4	≥500		≥50
	18芯					2.0	≤31.3

1導電線芯
2高壓聚乙烯絕緣
3塑料填芯
4包帶
5直放或疏繞銅線
6韌銅帶
7聚氯乙烯護套
8包帶
9聚氯乙烯護套
10雙層鍍鋅銅帶
11聚乙烯內護套
